RT9709应用电路
Integrated Over Voltage Protection Circuit
Features
• Fully Integrated Protection Circuit for Three Protection Variables
► User Programmable OCP Threshold
► Input OVP Less than 1us
► Battery OVP
• Up to 30V Over Voltage Protection
• High Accuracy Protection Threshold
• High Immunity of False Triggering Under Transients
• Warning Indication Output
• Enable Input
• Thermally Enhanced WDFN Package
• RoHS Compliant and Halogen Free
Application
• Cellular Phones
• Digital Cameras
• PDAs and Smart Phones
• Portable Instruments

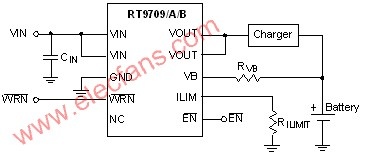

RT9709应用电路图
