4通道红外遥控继电器电路,4 cha

4通道红外遥控继电器电路,4 channel infrared remote relaysDescription

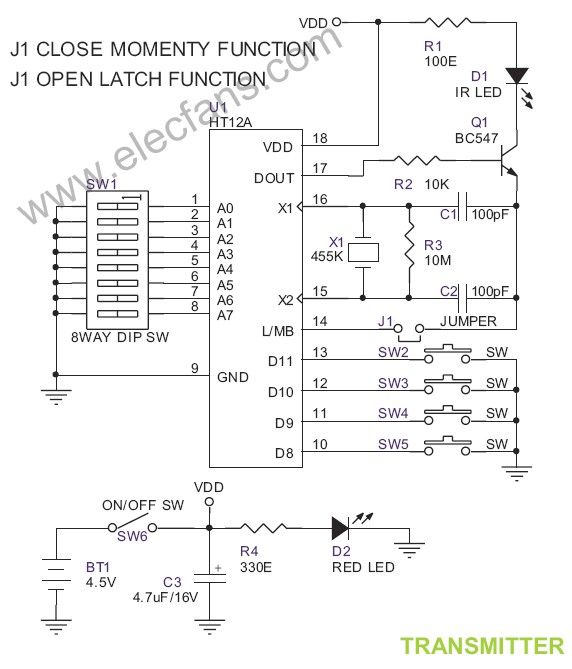

Transmitter Schematic

4 Channel Infrared (IR) Remote is a simple kit using the famous HT12A and HT12D encoder / decoder chips from Holtek

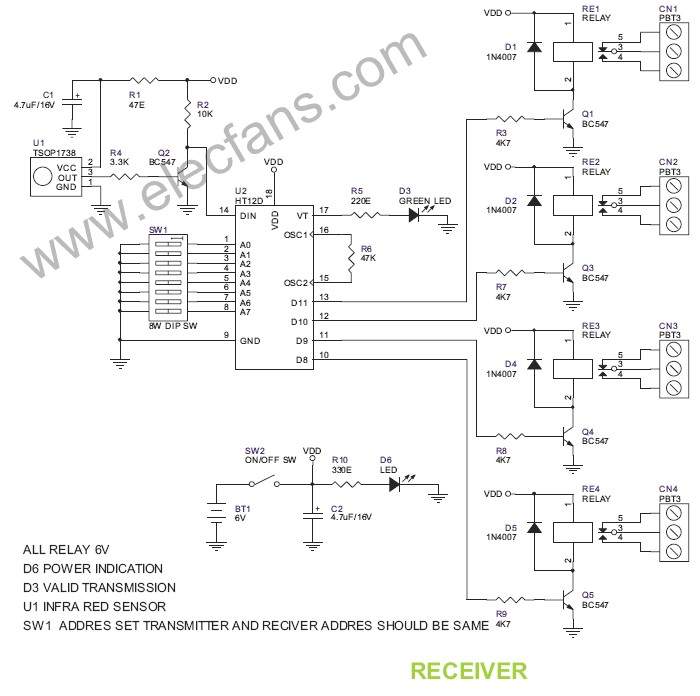

Receiver Schematic

Transmitter PCB

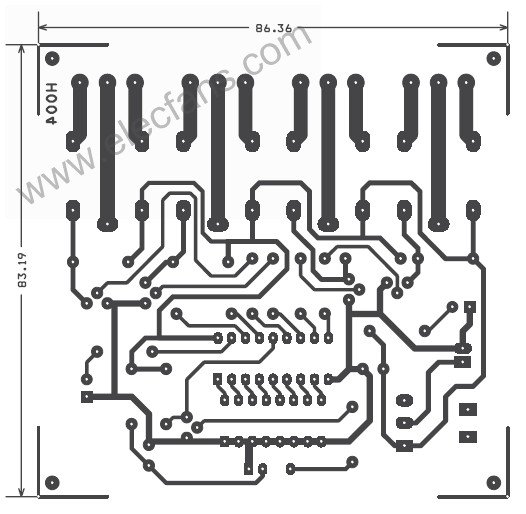

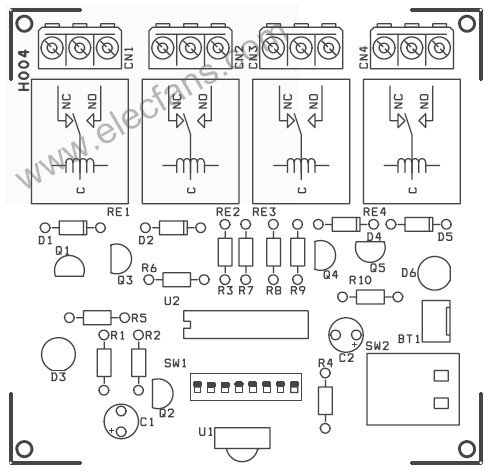

Receiver PCB
